How to Design for Injection Molding?

Designing for injection molding begins long before a mold reaches the press. It starts with decisions about material, wall thickness, draft angles, parting lines, gates, ribs, and expected production volume. Grand View Research estimates that the global injection molded plastics market reached approximately USD 284.9 billion in 2023. PlasticsEurope’s Plastics—The Fast Facts 2023 report also recorded 400.3 million tonnes of global plastics production in 2022. These figures show the scale of the industry, but they do not guarantee a manufacturable part. Poor geometry can still create sink marks, short shots, warpage, weld lines, or expensive tooling changes.

A strong injection molding design connects product intent with real factory conditions. Designers should test uniform wall sections, provide practical draft, avoid sharp internal corners, and position ribs carefully. A 1-degree draft may help ejection, yet texture, depth, and resin selection can demand more. Small details matter. A 0.2-millimeter mismatch can affect fit, appearance, or assembly. ISO 20457 provides useful guidance for molded plastic tolerances, while resin suppliers publish shrinkage and processing data that should guide simulation and tooling decisions. Experience also teaches humility. A design that looks perfect in CAD may fail beside a cooling channel or under uneven packing pressure. This guide explains how to review each decision, from material selection to mold flow, while balancing cost, cycle time, quality, and repair risk. No universal formula exists. Good practice still requires testing, measurement, and revision.

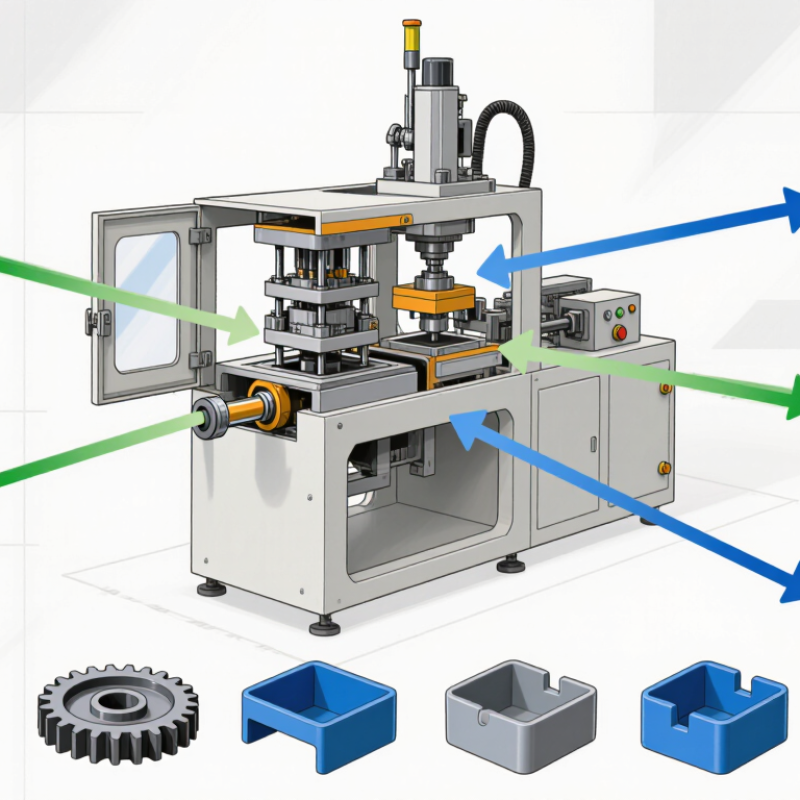

How to Design for Injection Molding?
Table of Contents [Hide]
1 Define Part Function, Material, and Tolerances Before Mold Design
2 Set Uniform Walls at 1.5–4 mm and Limit Thickness Transitions
3 Apply 1–2° Draft per Side for Reliable Part Ejection
4 Add Ribs at 40–60% of the Nominal Wall Thickness
5 Allow for Material Shrinkage of Approximately 0.1–2.0% in Tooling

Define Part Function, Material, and Tolerances Before Mold Design

How to Design for Injection Molding?

Define Part Function, Material, and Tolerances Before Mold Design

Injection molding begins with the part’s job, not the mold cavity. Identify loads, temperature exposure, chemical contact, assembly forces, and expected service life. A thin wall may save resin but fail under impact. A rib may add stiffness but create sink marks. Choose resin after testing these conditions, not from habit. The 2024 U.S. Plastics Industry Size & Impact report recorded about 1.55 million jobs and $548.1 billion in shipments. That scale reflects how small design decisions influence large production systems.

Tips: Write a one-page part brief. State the material grade, shrinkage range, wall targets, datum surfaces, and critical dimensions. Separate functional tolerances from cosmetic preferences. ISO 20457 provides useful guidance for molded-part tolerances, but it is not a substitute for supplier trials. Confirm draft angles early, especially around textured surfaces. Do not guess.

A practical tolerance stack-up should include material shrinkage, mold variation, cooling behavior, and measurement method. Glass-filled materials can reduce warpage, yet they may increase tool wear and directional distortion. Experience shows that a perfect CAD model can still produce an unstable part. I have seen teams tighten every dimension, then discover that assembly became slower and more expensive. That choice needed reflection. Allow wider tolerances where function permits, and reserve precision for sealing faces, alignment features, and moving interfaces. Discuss those priorities with the mold designer before steel is cut.

How to Design for Injection Molding? — Define Part Function, Material, and Tolerances Before Mold Design

Use this engineering checklist to establish the key part requirements before creating the injection mold. Values are general design ranges; the final specification should be confirmed through material data sheets, testing, and the selected molding process.

Design Dimension Requirement to Define Typical Engineering Guidance Why It Matters to Mold Design Recommended Input Before Mold Design
Part Function Primary load and operating condition Specify static or cyclic loads, impact exposure, operating temperature, chemical contact, and expected service life. Determines material grade, wall structure, ribs, bosses, ejection strategy, and required validation testing. Provide load cases, temperature range, environmental exposure, safety factor, and target service life.
Part Function Critical interfaces and mating features Identify sealing surfaces, snap-fits, fastener locations, bearing surfaces, alignment features, and cosmetic surfaces. Controls parting-line location, shutoffs, slide mechanisms, lifters, draft direction, and local tolerances. Mark all functional datums and interfaces on the 3D model and drawing.
Part Function Assembly method Define whether the part uses screws, heat staking, ultrasonic welding, press fitting, snap assembly, or adhesive bonding. Assembly method affects boss geometry, joint clearance, gate placement, weld-line risk, and post-molding operations. Document mating-part materials, assembly force, fastening torque, and allowable joint movement.
Material Polymer family and grade Select from amorphous materials such as ABS or PC, or semi-crystalline materials such as PP, PE, PA, or POM, according to performance needs. Flow behavior, shrinkage, cooling rate, warpage, mold temperature, and processing window vary significantly by polymer and grade. Specify the exact material family, grade requirements, reinforcement level, color, additives, and compliance needs.
Material Reinforcement and additives Glass fiber, mineral filler, flame retardant, UV stabilizer, impact modifier, and lubricants can change shrinkage and anisotropy. Reinforced materials may require stronger tooling, larger gates, balanced filling, and special attention to fiber-direction warpage. State filler type and percentage, flame rating, UV requirement, colorant system, and recycled-content target if applicable.
Material Moisture sensitivity and drying Hygroscopic materials, including many polyamides and polyesters, normally require controlled drying before molding. Incorrect moisture control can cause splay, bubbles, brittleness, dimensional instability, or reduced mechanical performance. Define resin storage, drying temperature and time, maximum moisture level, and molding regrind limits.
Geometry Nominal wall thickness Many general-purpose thermoplastic parts use approximately 1.5–3.0 mm walls, but the suitable value depends on material and flow length. Wall thickness affects filling pressure, cooling time, sink marks, warpage, cycle time, and mold temperature control. Set a nominal wall target and identify areas where thicker or thinner sections are unavoidable.
Geometry Wall-thickness uniformity Avoid abrupt changes; use gradual transitions and coring. Thick sections should generally be replaced with ribs or hollow structures. Uniform sections reduce differential shrinkage, voids, sink marks, and distortion. Review every thick-to-thin transition and add fillets, cores, or ribs before mold construction.
Geometry Draft angle A common starting range is approximately 0.5°–1° per side for smooth surfaces; textured surfaces often need additional draft. Draft supports clean ejection and reduces scuffing, drag marks, sticking, and damage to the cavity surface. Define draft by surface finish, texture depth, material shrinkage, ejection direction, and allowable appearance marks.
Geometry Ribs and bosses Rib thickness is often about 40%–60% of the adjacent nominal wall to reduce sink risk. Use generous radii at rib bases. Improper ribs and bosses can create sink marks, short shots, stress concentration, and difficult ejection. Specify screw size, insert type, assembly load, boss height, rib thickness, and minimum radii.
Geometry Fillets and sharp corners Use internal radii wherever possible; a radius near 0.5 times the nominal wall thickness is a common starting point. Rounded transitions improve material flow, reduce stress concentration, and simplify machining and polishing. Identify intentional sharp edges separately from edges that can be rounded for manufacturability.
Mold Layout Parting line and mold opening direction Choose the opening direction to minimize undercuts and keep critical cosmetic or sealing surfaces away from unnecessary parting lines. Parting-line selection determines mold complexity, flash risk, ejection direction, and visible witness lines. Mark preferred parting lines, no-flash zones, cosmetic zones, and surfaces that must remain uninterrupted.
Mold Layout Undercuts and side actions Internal or external undercuts may require slides, lifters, collapsible cores, flexible features, or a redesign. Side actions increase mold size, cost, maintenance requirements, and cycle complexity. List every undercut and classify it as acceptable, removable by redesign, or requiring a moving mold component.
Mold Layout Gate location and flow path Gate placement should support balanced filling and keep weld lines, gate vestige, and air traps away from critical areas. Gate design affects filling pressure, packing, weld-line strength, warpage, appearance, and fiber orientation. Define gate restrictions, preferred gate areas, prohibited cosmetic zones, and weld-line acceptance criteria.
Mold Layout Venting and air evacuation Vents are typically placed near end-of-fill regions, parting lines, inserts, and deep ribs or pockets. Effective venting prevents burn marks, short shots, trapped air, hesitation, and inconsistent surface quality. Identify likely end-of-fill locations and specify areas where burn marks or gas traps are unacceptable.
Tolerances General dimensional tolerance For many standard thermoplastic dimensions, a preliminary tolerance of approximately ±0.10–0.30 mm may be realistic, depending on size, geometry, material, and process control. Tight tolerances can require better mold temperature control, steel-safe adjustments, controlled processing, and additional inspection. Separate general tolerances from critical dimensions and reference a recognized plastics tolerance standard where appropriate.
Tolerances Critical dimensional tolerance Use tighter limits only where function requires them. Large dimensions, long flow paths, and reinforced materials generally show greater variation. Critical dimensions influence cavity compensation, mold cooling, gate position, process capability, and inspection method. Provide nominal size, upper and lower limits, datum scheme, measurement temperature, and capability target.
Tolerances Shrinkage allowance Typical linear shrinkage may range from roughly 0.1% to 2.0% for many thermoplastics, with higher and directional values possible for reinforced grades. Shrinkage compensation determines cavity dimensions and strongly affects final part size and warpage. Use the selected resin supplier's shrinkage data and define separate flow-direction and transverse-direction allowances when needed.
Tolerances Flatness and warpage Set flatness limits according to mating function rather than applying an unnecessarily tight blanket requirement. Warpage is influenced by wall variation, fiber orientation, cooling balance, packing, mold temperature, and ejection timing. Define supported condition, measurement span, datum surface, allowable deviation, and assembly acceptance test.
Appearance Surface finish and texture Specify polished, matte, etched, textured, or as-molded surfaces. Deeper texture generally requires more draft. Finish affects draft, ejection force, visible flow marks, weld-line visibility, tooling process, and maintenance. Assign surface-finish requirements by zone and define acceptable gate marks, ejector marks, weld lines, and flow marks.
Quality Inspection and validation plan Use dimensional inspection, material verification, functional testing, appearance checks, and environmental or life testing as required. Early agreement prevents disputes over measurement method, sampling, acceptance limits, and mold-correction responsibility. Define inspection characteristics, sample size, measurement equipment, approval criteria, and required validation stages.
Production Expected volume and cycle target Annual volume, batch size, desired cycle time, and planned tool life determine cavity count, cooling design, steel selection, and automation level. A mold for low-volume production may differ substantially from a high-cavitation production mold. Provide annual demand, peak demand, production schedule, target cycle time, tool-life expectation, and maintenance approach.
Engineering note: The stated ranges are preliminary design references, not universal acceptance limits. Final values should be confirmed using the selected material's processing data, mold-flow analysis, prototype trials, capability studies, and the applicable drawing or plastics-tolerance standard.

Set Uniform Walls at 1.5–4 mm and Limit Thickness Transitions

How to Design for Injection Molding?

Set Uniform Walls at 1.5–4 mm and Limit Thickness Transitions

For many thermoplastics, a 1.5–4 mm wall provides a practical balance between filling, cooling, and stiffness. The correct value still depends on resin, flow length, and part geometry. Industry design data consistently links uneven walls with sink marks, voids, and warpage. A 6 mm boss beside a 2 mm wall is a warning sign. It cools slowly and pulls nearby surfaces inward.

Keep the main wall close to one thickness. When a transition is necessary, change it gradually rather than creating a sharp step. A common engineering target is to keep thickness changes near 10–15 percent where possible. Core out thick sections with ribs or hollow features. Rib thickness often stays near 40–60 percent of the adjoining wall. That reduces sinking while preserving useful stiffness. Small changes matter.

Shrinkage data measured under ASTM D955 and warpage evaluation methods described in ISO 294-4 show why cooling history matters. Thicker areas retain heat longer, so they contract later. The mold may look accurate, yet the part can still twist after ejection. In production reviews, I often find the real mistake earlier: the wall was thickened to solve strength, without checking flow or cooling. That fix feels safe, but it can create a larger defect. Sometimes, a thinner rib layout performs better than one heavy block.

Apply 1–2° Draft per Side for Reliable Part Ejection

How to Design for Injection Molding?

Apply 1–2° Draft per Side for Reliable Part Ejection

Draft is a slight taper added to vertical part walls. It helps the molded part leave the tool without scuffing, sticking, or distortion. In practical mold reviews, 1–2° draft per side is a dependable starting range for smooth, untextured walls. Deep ribs, narrow cores, and tall surfaces may need more. Texture increases friction, so its depth should influence the draft decision.

Keep the wall slightly wider at the parting line than at the ejection end. This creates clearance as the mold opens. Measure draft from the actual pull direction, not from the machine floor. A wall can appear tapered in a CAD view yet remain nearly parallel to the tool movement. That mistake is easy to miss. I once approved a similar feature too quickly, and the first trial showed visible drag marks. The correction required a tool adjustment.

Tips: Add draft early, before detailed ribs and logos. Check every face along the intended pull direction. Use 1° only when geometry and surface finish allow it. Choose closer to 2° for deeper walls or textured surfaces. Keep ribs thinner than the surrounding wall when possible, and draft both rib sides. Ejector pins should support the part evenly. Otherwise, extra draft may not prevent bending or whitening. Ask the mold designer to review tight features before cutting steel. Small changes are cheaper there.

Add Ribs at 40–60% of the Nominal Wall Thickness

How to Design for Injection Molding?

Ribs strengthen thin injection-molded walls without adding unnecessary material. Keep each rib between 40% and 60% of the nominal wall thickness. A 2.0 mm wall, therefore, needs a rib about 0.8–1.2 mm thick. Thicker ribs cool slowly and may create sink marks on the opposite surface.

Published resin-processing data commonly reports linear shrinkage from 0.2% to 2.0%, depending on polymer, filler, and processing conditions. That range is too wide for guesswork. ISO 294-4:2018 also recognizes shrinkage as directional, not perfectly uniform.

Use a rib height of roughly two to three times its thickness when space permits. Add draft, usually 0.5–1 degree per side, and soften the rib-to-wall intersection with a small radius. Sharp corners concentrate stress and can make filling less stable. Multiple thin ribs often perform better than one heavy rib. I have seen attractive CAD models fail because the rib looked “strong” but cooled unevenly. The 40–60% rule is useful, not sacred. Glass-filled materials, long flow paths, and strict cosmetic requirements may require mold-flow analysis and physical trials.

Tips:

Measure the nominal wall before sizing ribs. Check the opposite surface for sink marks. Keep ribs aligned with the expected load. Review gate location and cooling channels together. Prototype one rib family before releasing the full tool. Record actual fill time, pressure, warpage, and dimensions. Small changes can matter.

Allow for Material Shrinkage of Approximately 0.1–2.0% in Tooling

How to Design for Injection Molding?

Allow for Material Shrinkage of Approximately 0.1–2.0% in Tooling

Injection-molded parts rarely keep the exact dimensions of the cavity. As the polymer cools, it contracts. Typical shrinkage may range from 0.1% to 2.0%, depending on the material, wall thickness, flow direction, and processing conditions. A 100 mm feature could therefore change by 0.1 to 2.0 mm. That difference can affect assembly.

Designers should confirm the material supplier’s shrinkage data before releasing tooling. Treat the value as a starting point, not a guarantee. Mold temperature, packing pressure, cooling time, and fiber orientation can all change the final result. Reinforced materials may shrink differently along and across the flow path. Uneven walls can also create warpage.

A practical workflow begins with uniform wall thickness and clear dimensional priorities. Critical holes, snap fits, and sealing surfaces need tighter control than cosmetic areas. Add compensation to the tool dimensions, then validate it with first-article measurements. Check several parts, not just one. One sample can hide process variation.

The first calculation may be wrong.

I have learned that shrinkage assumptions need testing. A design may look correct in CAD but fail after cooling. When results differ, review the material lot, molding settings, and measurement method before changing the tool. Small corrections are often safer than aggressive rework.
